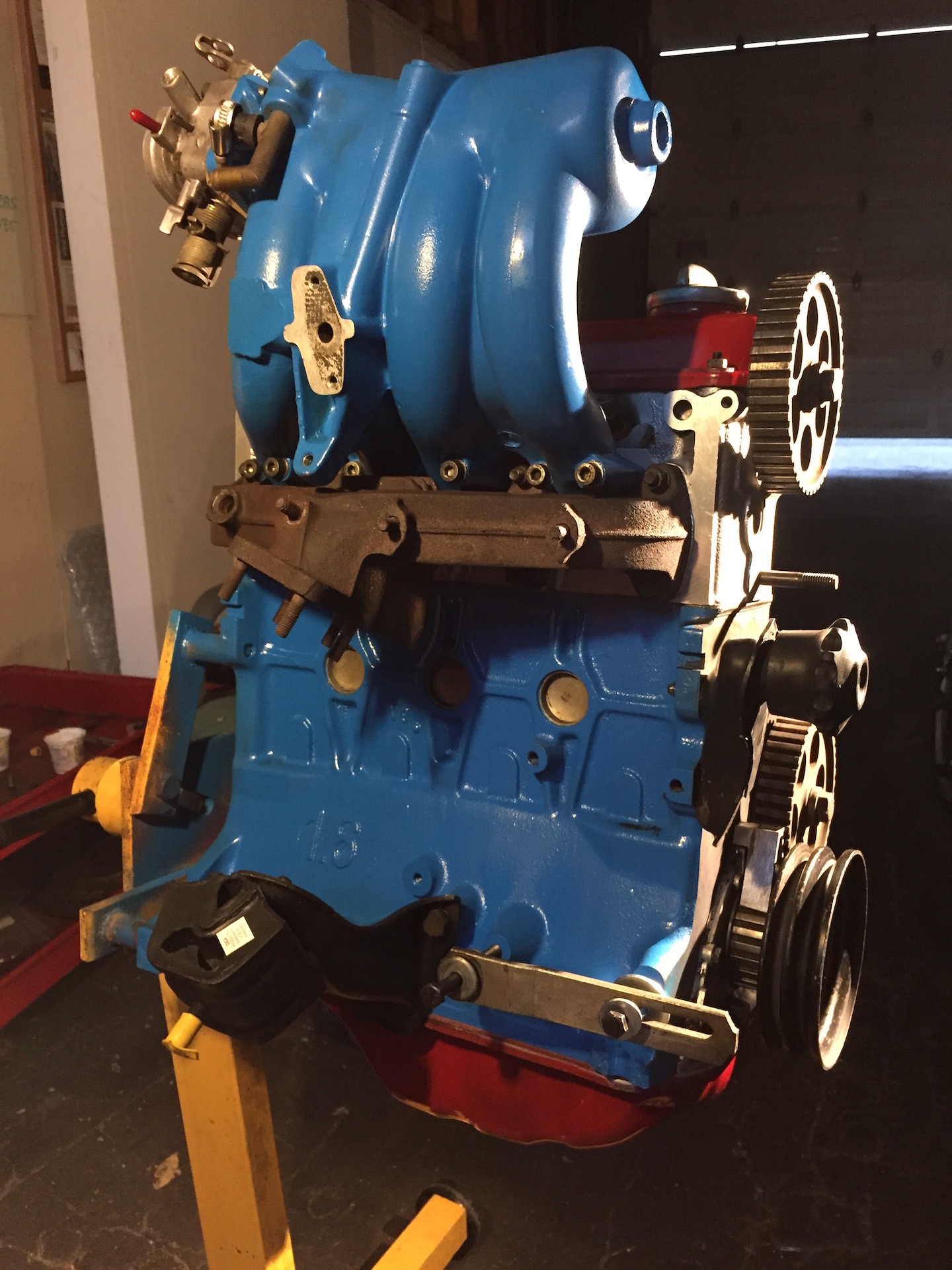

Completed Motor: Air Side

On this side, you see the intake and exhaust manifolds on top, the system of pulleys driven by the cam and crank shafts. From top down, it is intake, exhaust attached to the head, mounted on top of the block, with the red oil pan below.
